Intercity
EMU
Third-Generation
Malaysia ETS Intercity
EMU (ETS3)
Building on the success of the previous ETS generations, the Third-Generation Malaysia ETS Intercity EMU (ETS3) features significant advancements in performance, passenger experience and operational efficiency, setting a new benchmark for metre-gauge intercity rail.
AC 25 kV 50 Hz Overhead Catenary
Power Supply
6-car set
Formation
140km/h
Max. Operating Speed
739passengers
Passenger Capacity (AW3)
Design
Inspiration

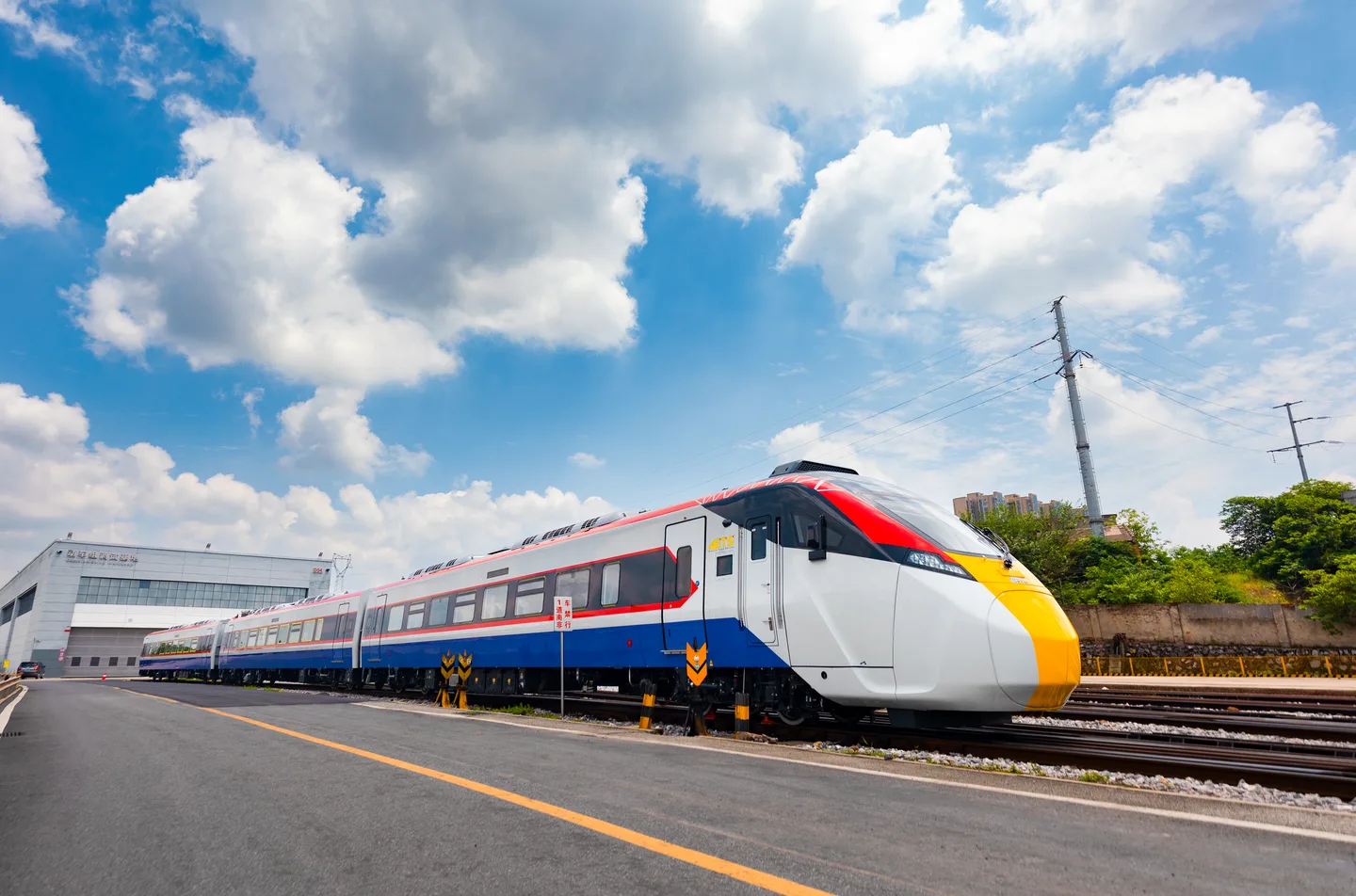

Inspired by the diamond-shaped architecture of the Permaisuri Zarith Sofiah Opera House, the exterior styling features bold geometric forms, while the headlight design echoes the faceted lines of a cut diamond, creating a distinctive and contemporary identity.
Key Features

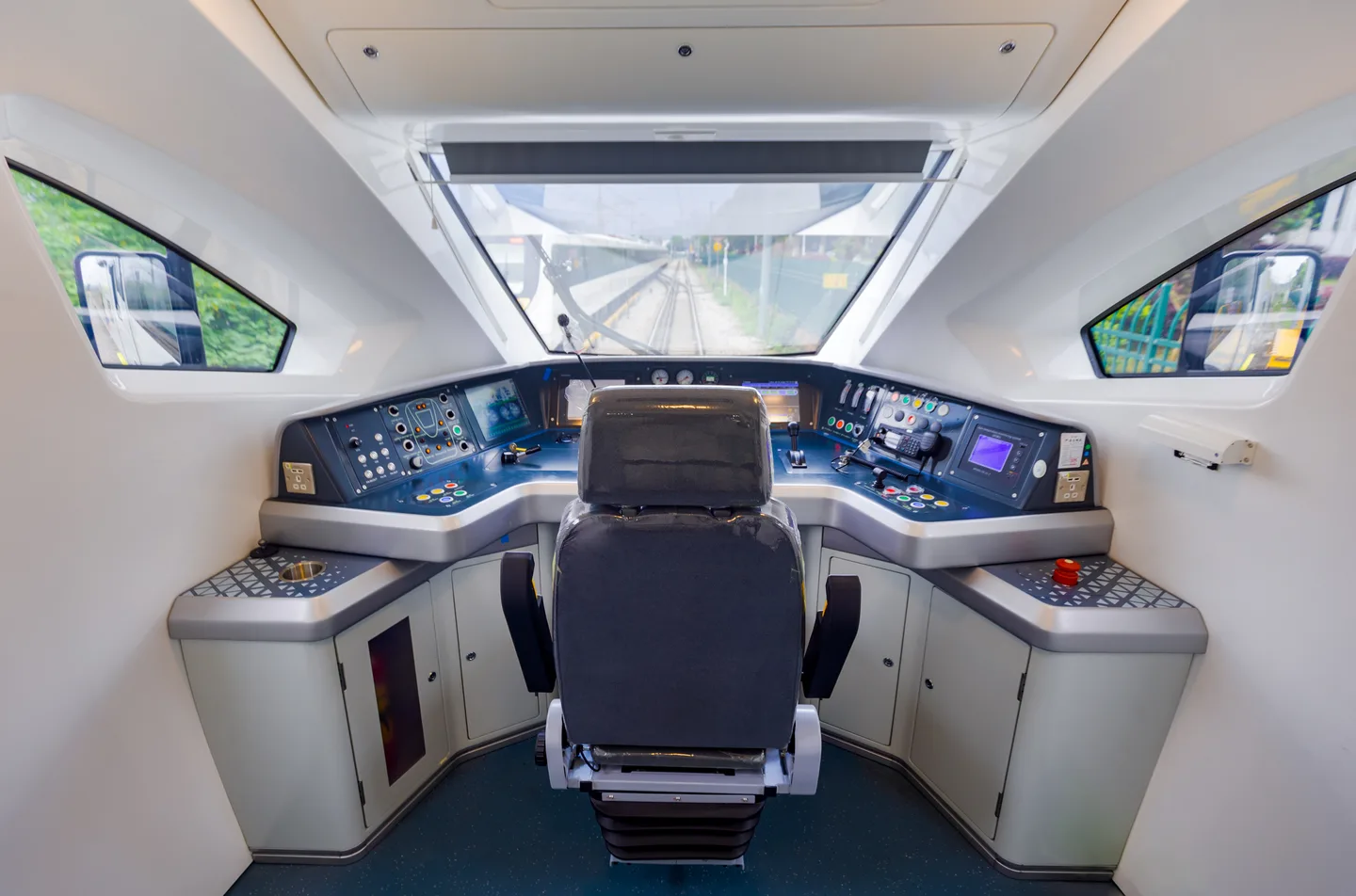

First-of-its-kind metre-gauge bogies equipped with an online condition monitoring and fault diagnosis system, integrated with a Driver Advisory System (DAS) to provide real-time operational guidance and enhance operational safety.
First metre-gauge application of a ground-based PIS platform, enabling centralised management and dynamic updating of onboard media content and passenger information interfaces.
Enhanced application of depot charging protection circuitry for EMUs, using low-voltage control to safely switch and manage high-voltage three-phase shore power, enhancing personnel safety during maintenance.
Technical data
| Power Supply | AC 25 kV 50 Hz Overhead Catenary |
|---|---|
| Track Gauge | 1000 mm |
| Train Configuration | Mc1–Tp–M1–M2–Tp–Mc2 |
| Formation | 4 motor cars & 2 trailer cars |
| Max. Operating Speed | 140 km/h |
| Max. Design Speed | 160 km/h |
| Starting Acceleration (0–40 km/h) | ≥ 0.8 m/s² |
| Max. Service Braking Deceleration | ≥ 1.0 m/s² |
| Max. Emergency Braking Deceleration | ≥ 1.2 m/s² |
| Passenger Capacity (AW1 / AW2 / AW3) | 312 / 595 / 739 passengers |
| Axle Load | ≤ 15 t |
| Length | 139600 mm |
| Width | 2750 mm |
| Height | 3905 mm |
| Wheel Diameter (new / worn) | 850 mm / 770 mm |
